Today we will talk about the clearance of bearings, In the world of precision machinery and mechanical design, bearing performance is the cornerstone of reliable and efficient operation. One of the most important but often overlooked factors that directly affect bearing performance is bearing clearance. Whether you’re a bearing distributor, importer, or product manager working in industries such as automotive, manufacturing, or industrial machinery, understanding the role of bearing clearance will help you make smarter purchasing decisions, avoid equipment failure, and extend service life.

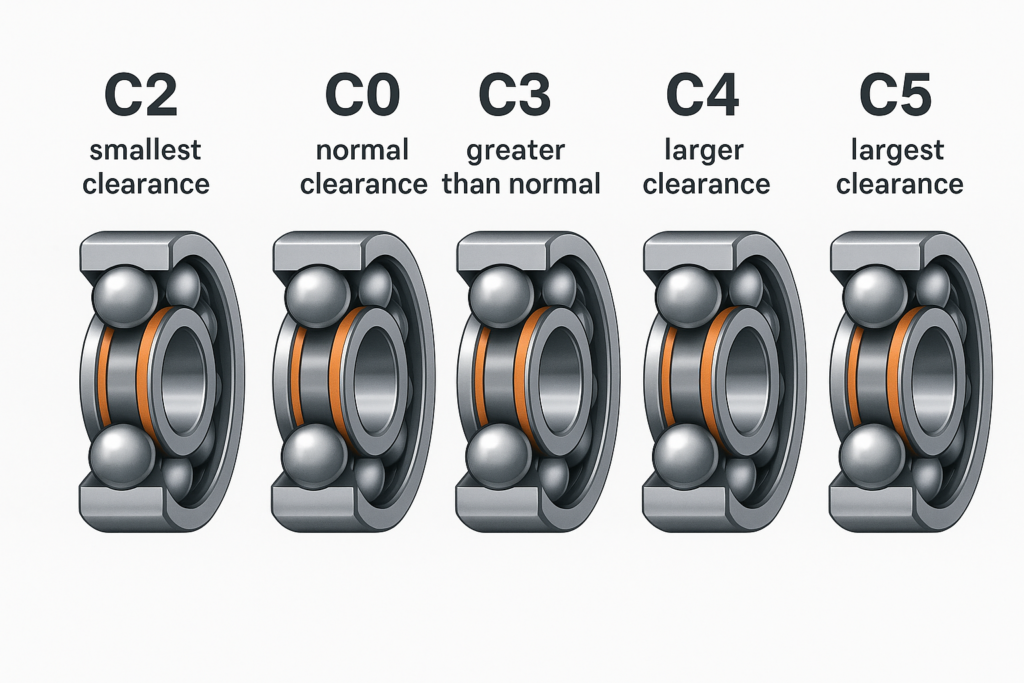

The above is a schematic diagram of the bearing clearance from C2 to C5
1. What is Bearing Clearance?
Bearing clearance refers to the amount of internal free movement between the rolling elements (balls or rollers) and the raceways inside the bearing. This gap is critical because it influences how the bearing handles loads, distributes lubrication, and responds to temperature changes. If the clearance is too small, it may cause excessive friction, overheating, and wear. On the other hand, if the clearance is too large, it can result in vibration, noise, and reduced precision. Selecting the correct clearance is vital for achieving balance between mechanical stability and operational smoothness.
2. What Types of Bearings Have Clearance?
Virtually all rolling-element bearings are designed with clearance, but the concept applies most clearly to the following types:
- Deep Groove Ball Bearings
- Cylindrical Roller Bearings
- Spherical Roller Bearings
- Tapered Roller Bearings
- Angular Contact Ball Bearings (although typically preloaded, clearance applies during assembly)
Each bearing type is designed for specific load and speed requirements, but the internal clearance must always be adjusted or selected based on the operating environment — including load, shaft fit, temperature, and rotational speed.
3. What Symbols Are Generally Used to Represent Bearing Clearance?
In the bearing industry, the clearance level is typically denoted using standardized C-class markings defined by ISO. The common symbols include:
| Symbol | Meaning |
| C2 | Clearance smaller than normal |
| C0 | Standard (normal) clearance |
| C3 | Clearance greater than normal |
| C4 | Clearance larger than C3 |
| C5 | Clearance larger than C4 |
These symbols are globally recognized, allowing engineers and buyers to specify and source the correct bearings no matter the region or supplier.
4. How Many Levels of Bearing Clearance Are There?
According to international standards, there are typically five levels of internal clearance for rolling bearings:
| Clearance Level | Description | Common Application Scenario |
| C2 | Less than normal | High-precision equipment, low temperatures |
| C0 (CN) | Normal clearance | Standard applications |
| C3 | Greater than normal | High-speed rotation, higher temperatures |
| C4 | Larger than C3 | Heavy load, extreme temperatures |
| C5 | Largest clearance level | Severe expansion conditions, heavy industry |
The choice of clearance impacts how the bearing compensates for thermal expansion, shaft and housing fits, and load distribution.
5. What Level of Clearance Should Be Selected for Bearings in Different Application Industries?
Selecting the correct bearing clearance is essential for ensuring that the bearing can withstand the operating environment — including load, temperature, speed, and external conditions. Below is a detailed chart including some industries to help you reference the appropriate clearance level:
| Application Industry | Recommended Clearance Level | Reason |
| Automotive (engines, gearboxes) | C3 | Handles high-speed rotation and thermal expansion. |
| Electric Motors | C3 | Reduces friction under normal operating temperatures. |
| Precision Instruments | C2 | Ensures tight fit and minimum vibration. |
| Heavy Industry (Steel mills) | C4 or C5 | Accommodates heavy loads and extreme temperature changes. |
| Agricultural Machinery | C3 | Withstands variable load and outdoor temperature swings. |
| Pumps & Compressors | C3 or C4 | Manages thermal expansion and fluctuating pressure loads. |
| Power Tools | C3 | Balances compact design with moderate speed and temperature rises. |
| Construction Machinery | C3 or C4 | Supports heavy shock loads and wide temperature variation outdoors. |
| Medical Equipment | C2 or C0 | Requires high precision and low operational noise for sensitive tasks. |
| Electrical Appliances (Household) | C3 | Handles stable temperatures but benefits from smoother, quieter motion. |
| Wind Power Generation Equipment | C3 or C4 | Endures variable wind loads, thermal expansion, and long service cycles. |
Selecting the correct clearance ensures both performance and longevity, while minimizing the risks of premature failure, noise, or excessive wear.
Conclusion
Bearing clearance is more than just a manufacturing tolerance — it is a critical performance factor that influences the reliability, efficiency, and lifespan of mechanical systems. Whether you are an importer, distributor, or industrial end-user, understanding the types of clearance, the markings, and the application-based selection criteria will empower you to source the right products for your clients or projects. Making the correct choice not only ensures smooth operation but also enhances your competitiveness in the market by delivering durable, high-quality solutions.
