Types of Needle Roller Bearings

1. Drawn Cup Needle Roller Bearings

• Thin-walled outer ring formed by precision drawing process

• Lightweight and space-saving

• Suitable for high-volume, cost-sensitive applications

Typical Applications: Automotive gearboxes, small motors, power tools

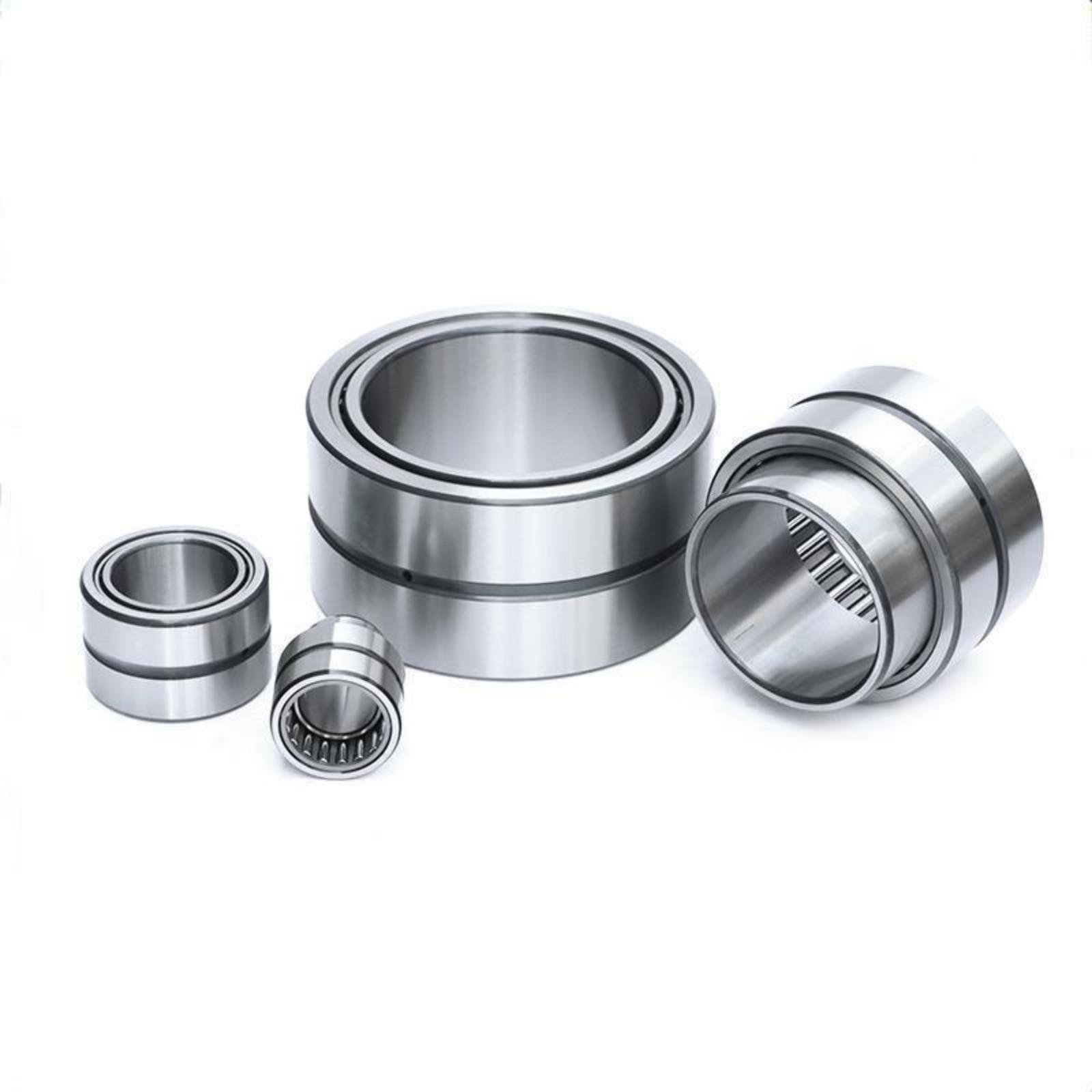

2. Machined Ring Needle Roller Bearings

• Solid, machined outer ring for higher rigidity

• Greater load capacity and dimensional stability

• Suitable for heavy-duty industrial applications

Typical Applications: Construction machinery, transmissions, industrial gear systems

3. Needle Roller and Cage Assemblies

• Consist only of needle rollers and a cage (no outer ring)

• Requires hardened shaft and housing raceways

• Maximum radial load capacity within minimal space

Typical Applications: Automotive engines, compressors, high-speed systems

4. Needle Roller Bearings with Inner Ring

• Supplied with a precision ground inner ring

• Ideal when the shaft cannot be hardened or ground

• Simplifies installation

Typical Applications: Industrial equipment, agricultural machinery

5. Combined Needle Roller Bearings

• Needle rollers combined with other bearing types (e.g., thrust ball or angular contact components)

• Capable of supporting both radial and axial loads

Typical Applications: Automotive transmissions, pump systems

6. Thrust Needle Roller Bearings

• Designed specifically to support axial loads

• Compact structure with needle rollers arranged radially

Typical Applications: Gearboxes, clutches, and axial load applications

Components of a Needle Roller Bearing and Their Materials

1. Outer Ring

Function:
Provides the external raceway surface and structural support.

Typical Materials:

• High carbon chromium steel (GCr15 / AISI 52100)

  • High hardness and fatigue resistance

• Low-carbon steel (for drawn cup types)

  • Case hardened after forming

• Alloy steel (20CrMnTi, 8620)

  • Carburized for heavy-duty applications

Drawn cup types use thin-walled steel shells, while machined types use solid rings for higher rigidity.

2. Needle Rollers

Function:
Serve as rolling elements to transmit radial loads.

Typical Materials:

• GCr15 / AISI 52100 bearing steel

  • Through-hardened or case-hardened

  • High wear resistance and fatigue strength

• Carburized alloy steel

  • For heavy shock loads

Precision grinding ensures dimensional accuracy and uniform load distribution.

3. Cage (Retainer)

Function:
Maintains proper spacing of needle rollers and guides motion.

Typical Materials:

• Pressed steel cage

  • Economical and durable

• Machined brass cage

  • High strength for heavy-duty use

• Polyamide (PA66 with glass fiber reinforcement)

  • Lightweight, low noise, high-speed suitability

4. Inner Ring (Optional)

Function:
Provides a hardened raceway when the shaft surface cannot serve directly as a raceway.

Typical Materials:

• GCr15 / AISI 52100 bearing steel

• Precision ground and hardened

If no inner ring is supplied, the shaft must be hardened and ground to serve as the raceway.

5. Thrust Washers (For Combined or Thrust Types)

Function:
Support axial loads in combined needle roller configurations.

Typical Materials:

• Bearing steel (GCr15)

• Hardened and precision ground

6. Seals (Optional)

Function:
Protect against contamination and retain lubricant.

Typical Materials:

• NBR (nitrile rubber)

• FKM (high-temperature applications)

• Steel-reinforced rubber seals

7. Lubrication

Function:
Reduce friction and heat generation.

Typical Options:

• Lithium-based grease

• Synthetic high-speed grease

• Oil lubrication for transmission systems
