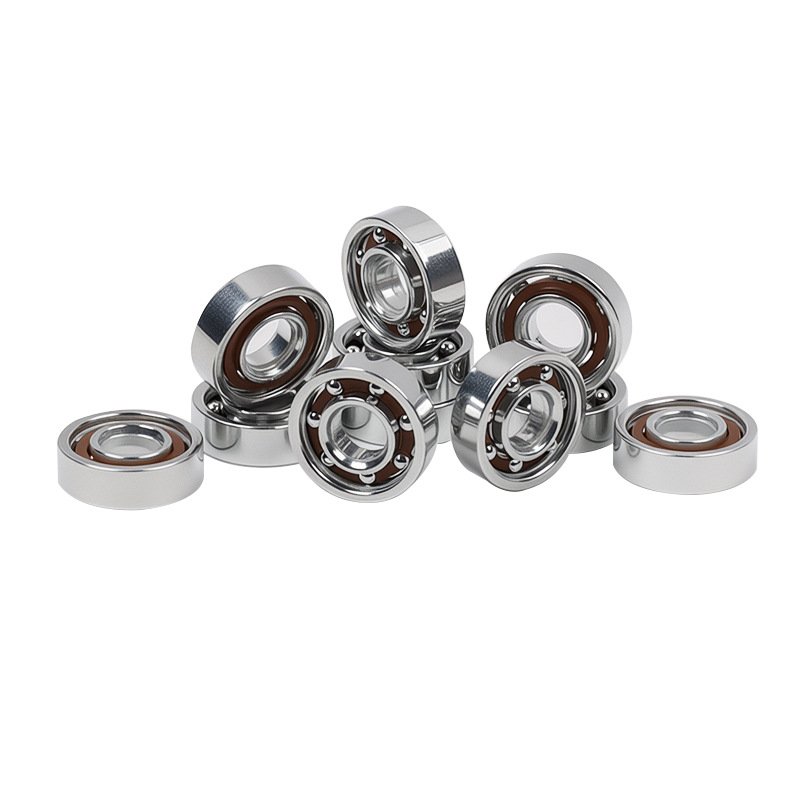

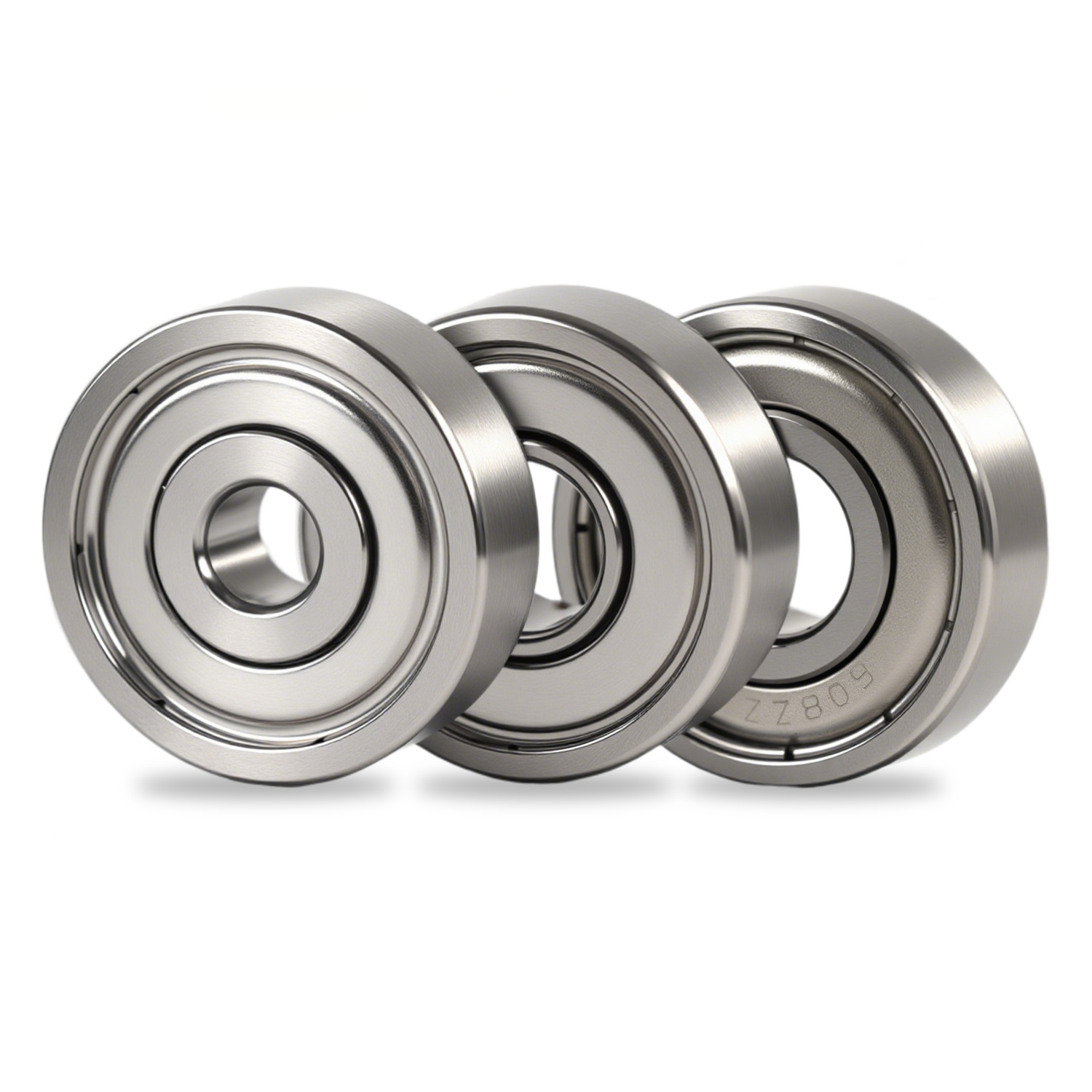

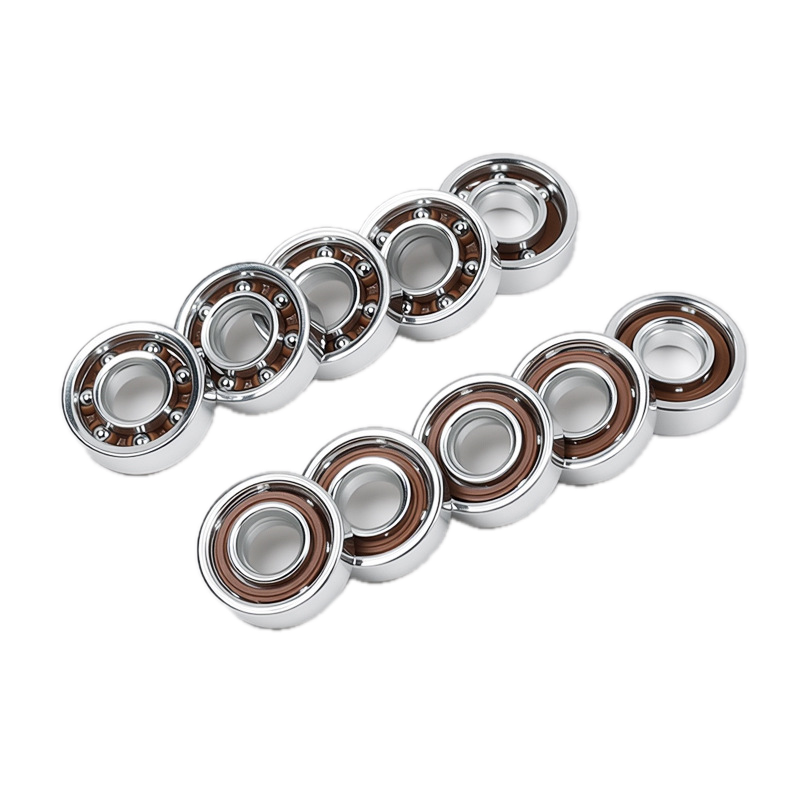

Micro Deep Groove Ball Bearing

Search Related Products

Miniature deep groove ball bearings are small, high-precision bearings designed for low friction, high-speed performance, and the ability to handle both radial and axial loads

Additional information

Material

high-quality chrome steel AISI 52100 or stainless steel AISI 440C

Application areas

Electric Motors and Generators, Medical Devices and Equipment, Robotics and Automation, Consumer Electronics (such as laptops and smartphones), Precision Instruments and Measuring Devices, More…..

Precision

ISO P2

Description

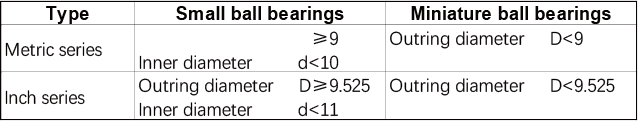

Small and Miniature deep groove ball bearings are available in metric series and inch series

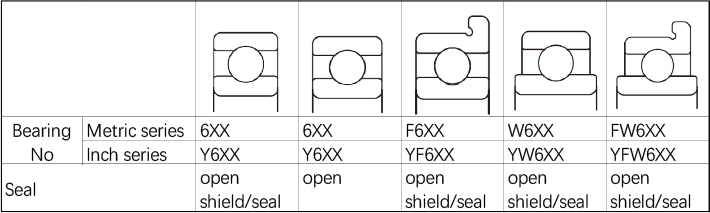

Micro Deep Groove Ball Bearing Type
the construction type is general type, with flange plate type and wide inner ring typeBearings with flanges on the one side of outer ring, because there is no need to design a  shoulder on the inner of the housing,It is conducive to machining high-precision through-holes

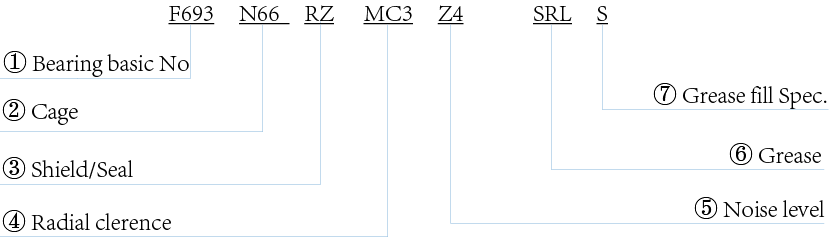

Micro Deep Groove Ball Bearing Part No

Additional information

Material

high-quality chrome steel AISI 52100 or stainless steel AISI 440C

Application areas

Electric Motors and Generators, Medical Devices and Equipment, Robotics and Automation, Consumer Electronics (such as laptops and smartphones), Precision Instruments and Measuring Devices, More…..

Precision

ISO P2

Micro Deep Groove Ball Bearing Application
