Cross Cylindrical Roller Slewing Bearing

Categories Cross Cylindrical Roller Slewing Bearing, Slewing Bearing

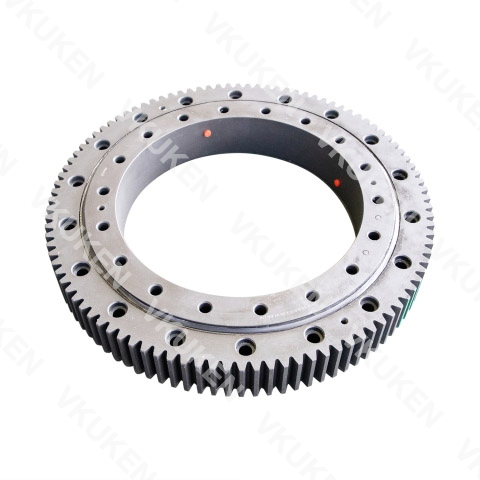

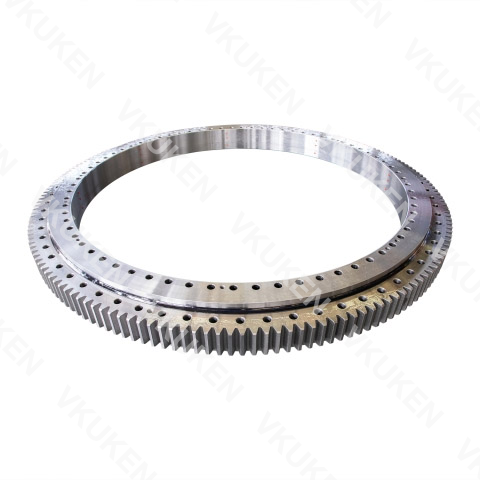

Cross Cylindrical Roller Slewing Bearing - Image 4

The crossed cylindrical roller slewing bearing is a specially structured slewing bearing. Its core design features cylindrical rollers arranged crosswise at a 90° angle to each other within the raceway.The rollers are 1:1 cross arranged.

Therefore, it is widely used in equipment with strict requirements for precision and space, such as industrial robots, high-precision machine tools, medical equipment, and radar pan-tilt systems.

Range of external diameter: 300mm to 6000mm

Ring material: 42CrMo / 50Mn/ C45

Ball/roller material: GCr15

Cage material: steel 20 or ZL102 cast aluminum alloy

Spacer material: nylon 6 / nylon 66

Quenching hardness of raceway: HRC55-62

Tooth type: no gear, internal gear, external gear

Delivery time: 15-30 days

Overview of Customized Cross Cylindrical Roller Slewing Bearings VKUKEN Cross Cylindrical Roller Slewing Bearing composed of inner ring, outer ring, rolling element and isolation block. The rollers are 1:1 cross arranged. It can bear the axial force, the overturning moment and a relatively large radial force simultaneously. Cylindrical rollers are arranged crosswise at 90° perpendicular to each other in the raceway. Spacers or separators are installed between the rollers to prevent tilting, mutual friction, increased rotational torque, and avoid contact or jamming. Features of Customized Cross Cylindrical Roller Slewing Bearings • Strong load-carrying capacity: Can simultaneously bear large radial loads, axial loads, moment loads, and loads in all directions. • High rotational accuracy: Through precision machining, assembly technology, and adjustable clearance design, it can achieve extremely high rotational accuracy with small runout during rotation. • Good rigidity: The cross-arranged rollers have a large contact area with the raceway, effectively resisting deformation and ensuring the bearing remains stable under high loads. • Easy installation: The outer or inner ring, which is split into two parts, is fixed together after the rollers and retainers are installed, making the installation operation simple. • Space-saving: The inner and outer rings are miniaturized to the minimum size, with an ultra-thin structure close to the limit of small size, suitable for equipment with limited space. Applications of Customized Size Cross Cylindrical Roller Slewing Bearing VKUKEN bearings are widely used in steel, port crane, engineering machinery, radar, shield machine, Wind power generation equipment, crane, radio telescope and other fields. Price of Customized Cross Cylindrical Roller Slewing Bearings Since most Cross Cylindrical Roller Slewing Bearings are custom-made, there is no fixed price. Quotes are provided based on the specific project requirements, ranging from tens of dollars to tens of thousands of dollars. We consistently prioritize quality while offering affordable prices to serve our clients.

Qualifications a Reputable Slew Bearings Supplier Should Possess

Globally, there are few factories capable of manufacturing slew bearings due to the significant investment required, including expensive machining equipment and overhead cranes. The ability to organize transportation is also crucial. We are a state-owned and majority-controlled slew bearing manufacturer with world-class production and lifting equipment, and a highly skilled engineering team. We can provide you with comprehensive technical services including on-site surveying, design, bearing selection, and installation support for slew bearings.

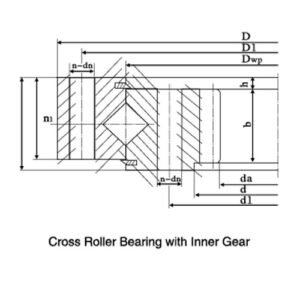

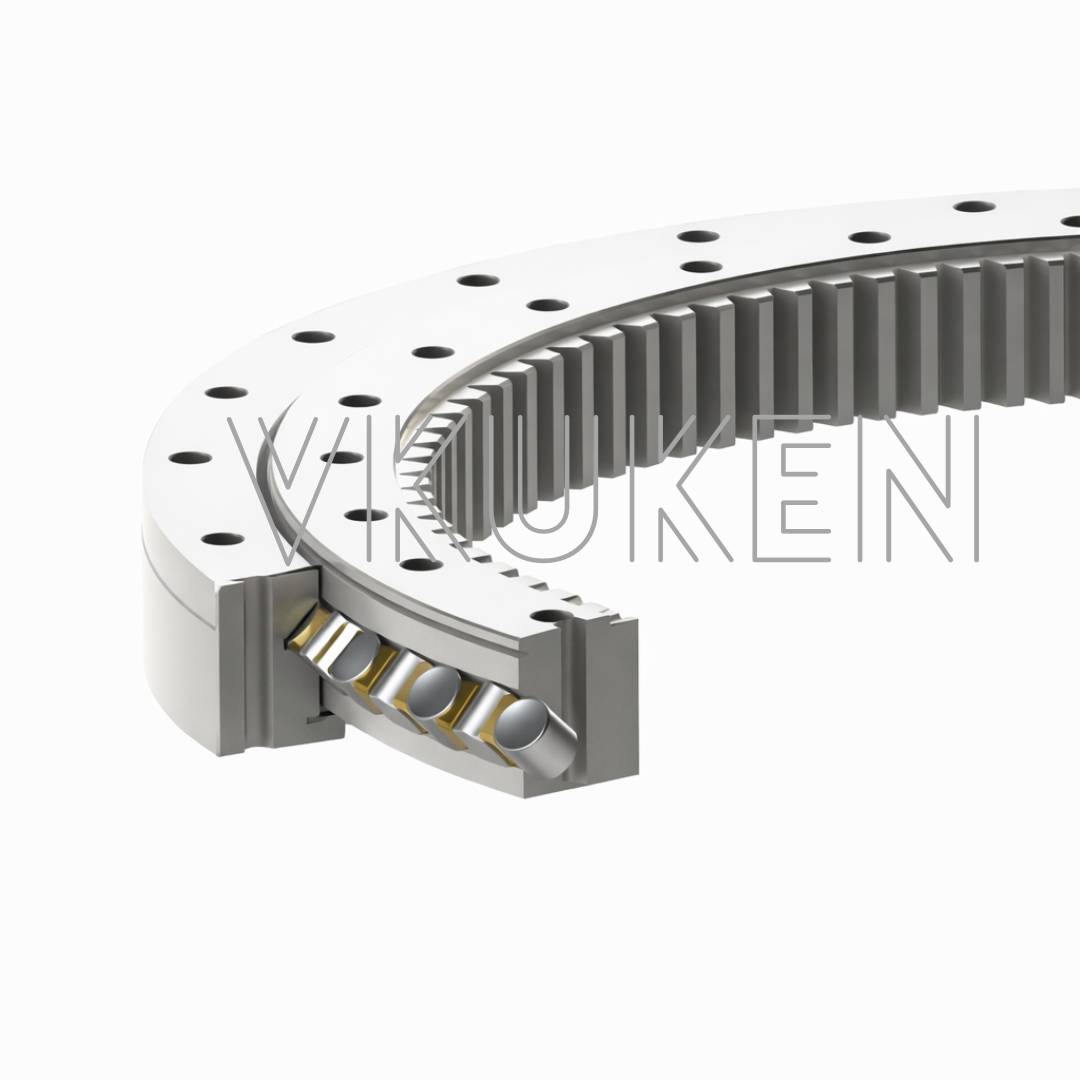

Internal gear(113/114 Series)

Bearing Model	Dimensions			Mounting Dimensions						Structural Dimension					Gear data					weight (kg)
	Dmm	dmm	Hmm	D1mm	D2mm	n	omm	dmmm	Lmm	n1	D3mm	d1mm	H1mm	hmm	bmm	x	Mmm	Demm	z
113.25.500	602	398	75	566	434	20	18	M16	32	4	498	502	65	10	60	0.5	5	367	74	80
114.25.500																	6	368.4	62
113.25.560	662	458	75	626	494	20	18	M16	32	4	558	562	65	10	60	0.5	5	427	86	90
114.25.560																	6	428.4	72
113.25.630	732	528	75	696	564	24	18	M16	32	4	628	632	65	10	60	0.5	6	494.4	83	100
114.25.630																	8	491.2	62
113.25.710	812	608	75	776	644	24	18	M16	32	4	708	712	65	10	60	0.5	6	572.4	96	110
114.25.710																	8	571.2	72
113.28.800	922	678	82	878	722	30	22	M20	40	6	798	802	72	10	65	0.5	8	635.2	80	170
114.28.800																	10	634	64
113.28.900	1022	778	82	978	822	30	22	M20	40	6	898	902	72	10	65	0.5	8	739.2	93	190
114.28.900																	10	734	74
113.28.1000	1122	878	82	1078	922	36	22	M20	40	6	998	1002	72	10	65	0.5	10	824	83	210
114.28.1000																	12	820.8	69
113.28.1120	1242	998	82	1198	1042	36	22	M20	40	6	1118	1122	72	10	65	0.5	10	944	95	230
114.28.1120																	12	940.8	79
113.32.1250	1390	1110	91	1337	1163	40	26	M24	48	5	1248	1252	81	10	75	0.5	12	1048.8	88	350
114.32.1250																	14	1041.6	75
113.32.1400	1540	1260	91	1487	1313	40	26	M24	48	5	1398	1402	81	10	75	0.5	12	1192.8	100	400
114.32.1400																	14	1195.6	86
113.32.1600	1740	1460	91	1687	1513	45	26	M24	48	5	1598	1602	81	10	75	0.5	14	1391.6	100	440
114.32.1600																	16	1382.4	87
113.32.1800	1940	1660	91	1887	1713	45	26	M24	48	5	1798	1802	81	10	75	0.5	14	1573.6	113	500
114.32.1800																	16	1574.4	99
113.40.2000	2178	1825	112	2110	1891	48	33	M30	60	8	1997	2003	100	12	90	0.5	16	1734.4	109	900
114.40.2000																	18	1735.2	97
113.40.2240	2418	2065	112	2350	2131	48	33	M30	60	8	2237	2243	100	12	90	0.5	16	1990.4	125	1000
114.40.2240																	18	1987.2	111
113.40.2500	2678	2325	112	2610	2391	56	33	M30	60	8	2497	2503	100	12	90	0.5	18	2239.2	125	1100
114.40.2500																	20	2228	112
113.40.2800	2978	2625	112	2910	2691	56	33	M30	60	8	2797	2803	100	12	90	0.5	18	2527.2	141	1250
114.40.2800																	20	2528	127
113.50.3150	3376	2922	134	3286	3014	56	45	M42	84	8	3147	3153	122	12	110	0.5	20	2628	14	2150
114.50.3150																	22	2824.8	129
113.50.3550	3776	3322	134	3686	3414	56	45	M42	84	8	3547	3553	122	12	110	0.5	20	3228	162	2470
114.50.3550																	22	3220.8	147
113.50.4000	4226	3772	134	4136	3864	60	45	M42	84	10	3997	4003	122	12	110	0.5	22	3660.8	16	2800
114.50.4000																	25	3660	47
113.50.4500	4726	4272	134	4636	4364	60	45	M42	84	10	4497	4503	122	12	110	0.5	22	4166.8	190	3100
114.50.4500																	25	4160	167

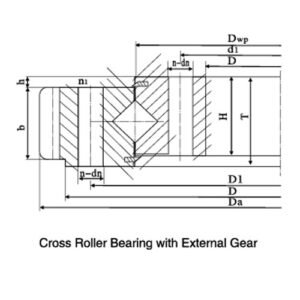

External gear(111/112 Series)

Bearing Model	Dimensions			Mounting Dimensions						Structural Dimension					Gear data					weight (kg)
	Dmm	dmm	Hmm	D1mm	D2mm	n	omm	dmmm	Lmm	n1	D3mm	d1mm	H1mm	hmm	bmm	x	Mmm	Demm	z
111.25.500	602	398	75	566	434	20	18	M16	32	4	498	502	65	10	60	0.5	5	629	123	80
112.25.500																	6	628.8	102
111.25.560	662	458	75	626	494	20	18	M16	32	4	558	562	65	10	60	0.5	5	689	135	90
112.25.560																	6	688.8	112
111.25.630	732	528	75	696	564	24	18	M16	32	4	628	632	65	10	60	0.5	6	772.8	126	100
112.25.630																	8	774.4	94
111.25.710	812	608	75	776	644	24	18	M16	32	4	708	712	65	10	60	0.5	8	850.8	139	110
112.25.710																	8	854.4	104
111.28.800	922	678	82	878	722	30	22	M20	40	6	798	802	72	10	65	0.5	8	966.4	118	170
112.28.800																	10	968	94
111.28.900	1022	778	82	978	822	30	22	M20	40	6	898	902	72	10	65	0.5	8	1062.4	130	190
112.28.900																	10	1068	104
111.28.1000	122	878	82	1078	922	36	22	M20	40	6	998	1002	72	10	65	0.5	10	1188	116	210
112.28.1000																	12	1185.6	96
111.28.1120	1242	998	82	1198	1042	36	22	M20	40	6	1118	1122	72	10	65	0.5	10	1298	127	230
112.28.1120																	12	1305.6	106
111.32.1250	1390	1110	91	1337	1163	40	26	M24	48	5	1248	1252	81	10	75	0.5	12	1449.6	118	350
112.32.1250																	14	1453	101
111.32.1400	1540	1260	91	1487	1313	40	26	M24	48	5	1398	1402	81	10	75	0.5	12	1605.6	131	400
112.32.1400																	14	1607.2	112
112.32.1600	1740	1460	91	1687	1513	45	26	M24	48	5	1598	1602	81	10	75	0.5	14	1817.2	127	440
112.32.1600																	16	1820.8	111
111.32.1800	1940	1660	91	1887	1713	45	26	M24	48	5	1798	1802	81	10	75	0.5	14	2013.2	141	500
112.32.1800																	16	2012.8	123
111.40.2000	2178	1825	112	2110	1891	48	33	M30	60	8	1997	2003	100	12	90	0.5	16	2268.8	139	9000
112.40.2000																	18	2264.4	123
111.40.2240	2418	2065	112	2350	2131	48	33	M30	60	8	2237	2243	100	12	90	0.5	16	2492.8	153	1000
112.40.2240																	18	2498.4	136
112.40.2500	2678	2325	112	2610	2391	56	33	M30	60	8	2497	2503	100	12	90	0.5	18	2768.4	151	1100
112.40.2500																	20	2776	136
111.40.2800	2978	2625	112	2910	2691	56	33	M30	60	8	2797	2803	100	12	90	0.5	18	3074.4	168	1250
112.40.2800																	20	3076	151
111.50.3150	3376	2922	134	3286	3014	56	45	M42	84	8	3147	3153	122	12	110	0.5	20	3476	171	2150
112.50.3150																	22	3471.6	155
111.50.3550	3776	3322	134	3686	3414	56	45	M42	84	8	3547	3553	122	12	110	0.5	20	3876	191	2470
112.50.3550																	22	3889.6	174
111.50.4000	4226	3772	134	4136	3864	60	45	M42	84	10	3997	4003	122	12	110	0.5	22	4329.6	194	2800
112.50.4000																	25	4345	171
111.50.4500	4726	422	134	4636	4364	60	45	M42	84	10	4497	4503	122	12	110	0.5	22	4835.6	217	3100
112.50.4500																	25	4845	191

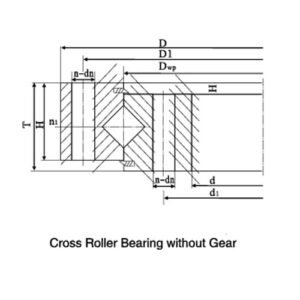

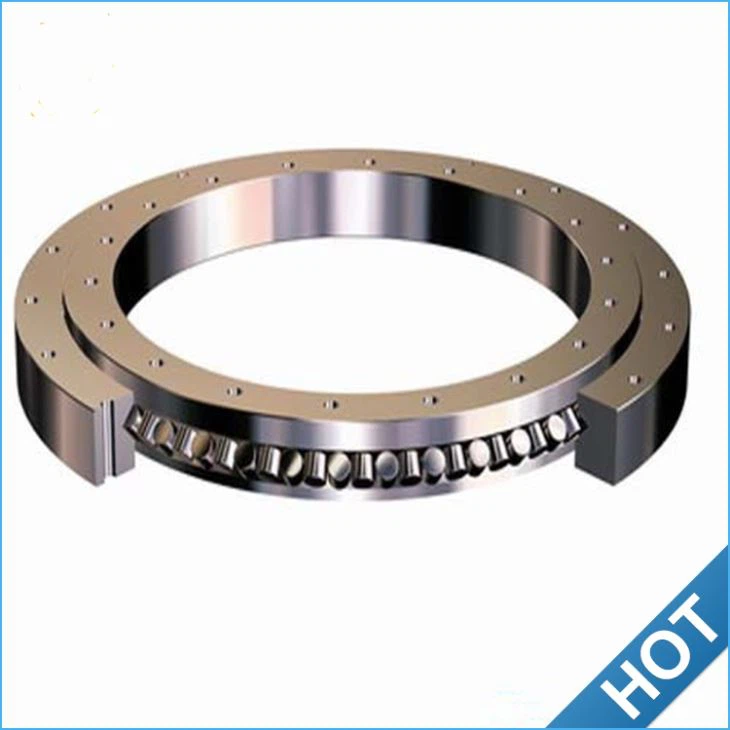

No gear(110 Series)

Bearing Model	Dimensions			Mounting Dimensions						Structural Dimension					weight (kg)
Bearing Model	Dmm	dmm	Hmm	D1mm	D2mm	n	mm	dmmm	Lmm	n1	D3mm	d1mm	H1mm	hmm	weight (kg)
110.25.500	602	398	75	566	434	20	18	M16	32	4	498	502	65	10	80
110.25.560	662	458	75	626	494	20	18	M16	32	4	558	562	65	10	90
110.25.630	732	528	75	696	564	24	18	M16	32	4	628	632	65	10	100
110.25.710	812	608	75	776	644	24	18	M16	32	4	708	712	65	10	110
110.28.800	922	678	82	878	722	30	22	M20	40	6	798	802	72	10	170
110.28.900	1022	778	82	978	822	30	22	M20	40	6	898	902	72	10	190
110.28.1000	1122	878	82	1078	922	36	22	M20	40	6	998	1002	72	10	210
110.28.1120	1242	998	82	1198	1042	36	22	M20	40	6	1118	1122	72	10	230
110.32.1250	1390	1110	91	1337	1163	40	26	M24	48	5	1248	1252	81	10	350
110.32.1400	1540	1260	91	1487	1313	40	26	M24	48	5	1398	1402	81	10	400
110.32.1600	1740	1460	91	1687	1513	45	26	M24	48	5	1598	1602	81	10	440
110.32.1800	1940	1660	91	1887	1713	45	26	M24	48	5	1798	1802	81	10	500
110.40.2000	2178	1825	112	2110	1891	48	33	M30	60	8	1997	2003	100	12	900
110.40.2240	2418	2065	112	2350	2131	48	33	M30	60	8	2237	2243	100	12	1000
110.40.2500	2678	2325	112	2610	2391	56	33	M30	60	8	2497	2503	100	12	1100
110.40.2800	2978	2625	112	2910	2691	56	33	M30	60	8	2797	2803	100	12	1250
110.50.3150	3376	2922	134	3286	3014	56	45	M42	84	8	3147	3153	122	12	2150
110.50.3550	376	3322	134	3686	3414	56	45	M42	84	8	3547	3553	122	12	2470
110.50.4000	4226	3772	134	4136	3864	60	45	M42	84	10	3997	4003	122	12	2800
110.50.4500	4726	4272	134	4636	4364	60	45	M42	84	10	4497	4503	122	12	3100

1. High Load Capacity in All Directions

Cylindrical rollers are arranged orthogonally (90° cross arrangement) between inner and outer rings.
Capable of simultaneously supporting axial loads, radial loads, and overturning moments.
One bearing can replace multiple bearing sets, simplifying system design.

2. Excellent Rotational Accuracy and Rigidity

Line contact between rollers and raceways ensures high stiffness and minimal elastic deformation.
Suitable for applications with precise positioning, smooth rotation, and low runout requirements.

3. Compact and Space-Saving Design

Compared with traditional slewing bearing combinations, cross cylindrical roller designs are thinner and lighter.
Ideal for compact equipment where installation space and weight are critical constraints.

4. Stable Performance Under Heavy and Dynamic Loads

Even load distribution across multiple rollers reduces localized stress.
Maintains stable performance under frequent start-stop, reversing rotation, and shock loads.

5. Flexible Structural Options

Available with internal gear, external gear, or without gear configurations.
Can be customized for mounting holes, sealing structures, preload levels, and materials to match specific applications.

6. Long Service Life and Low Maintenance

Optimized raceway geometry and surface treatment improve wear resistance and fatigue life.
Proper lubrication enables long-term operation with reduced maintenance frequency.

1. Industrial Robots and Automation Equipment

Robot joints, rotary tables, indexing mechanisms
Ensures high positioning accuracy, rigidity, and repeatability

2. Precision Machine Tools

Rotary tables, machining centers, turntables
Supports high-precision rotation under combined cutting forces

3. Construction and Lifting Machinery

Small and medium cranes, aerial work platforms
Handles high overturning moments with compact bearing size

4. Medical and Imaging Equipment

CT scanners, medical rotating platforms
Provides smooth, quiet rotation with high reliability

5. Semiconductor and Precision Manufacturing Equipment

Wafer handling systems, inspection platforms
Meets requirements for high cleanliness, accuracy, and stability

6. Military, Aerospace, and Optical Equipment

Radar systems, tracking platforms, antenna drives
Suitable for high-load, high-precision, and harsh operating conditions

VKUKEN has over 30 years of experience in bearing design and manufacturing. We can customize non-standard bearings according to customer drawings, or we can measure and create drawings of existing bearings on-site and then manufacture custom bearings based on those drawings. Our team of professional engineers has over 20 years of experience in bearing design and measurement.
